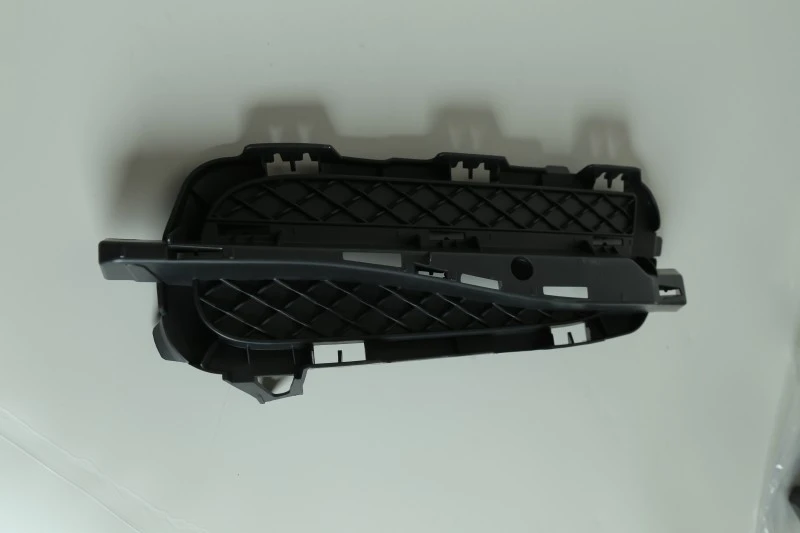

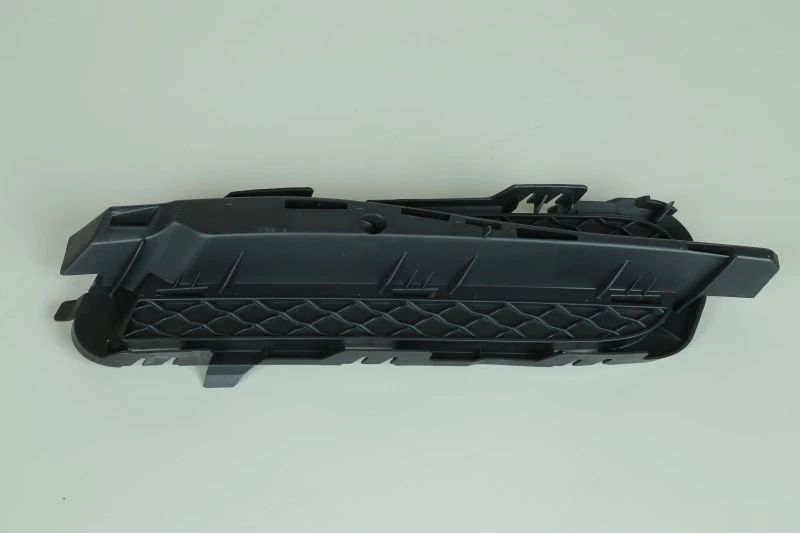

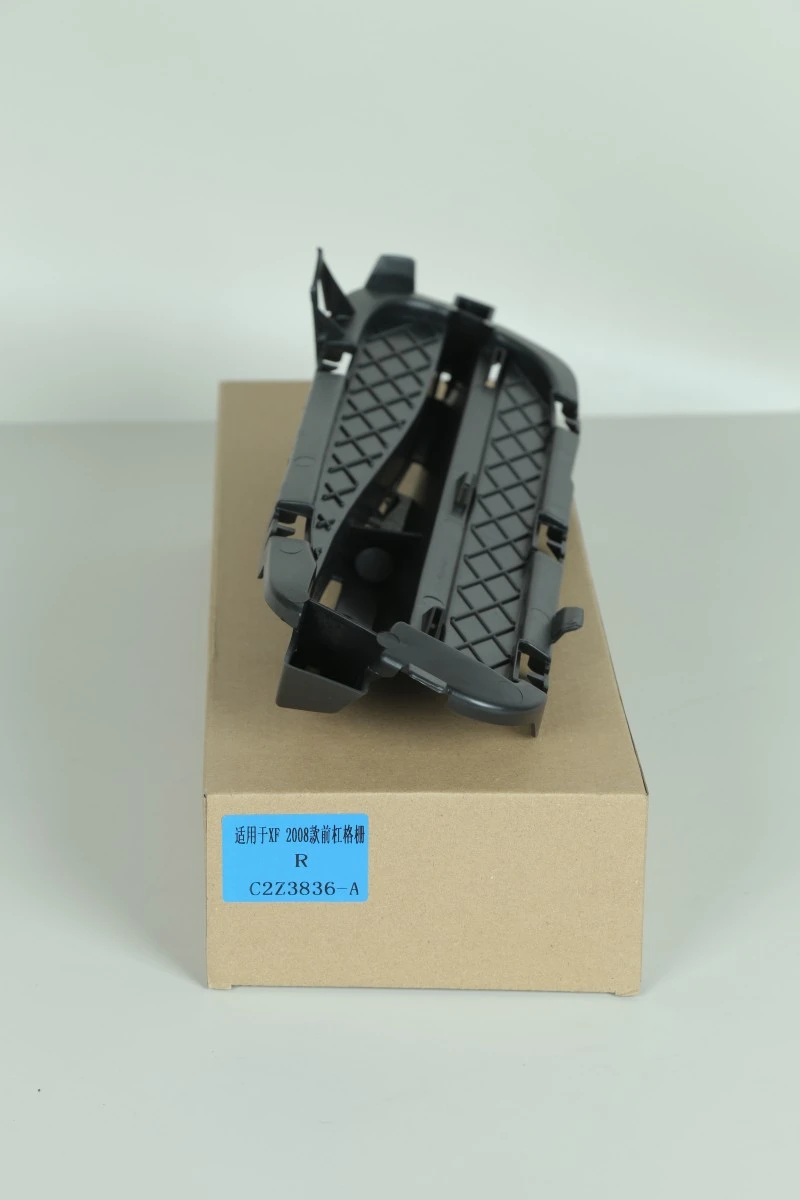

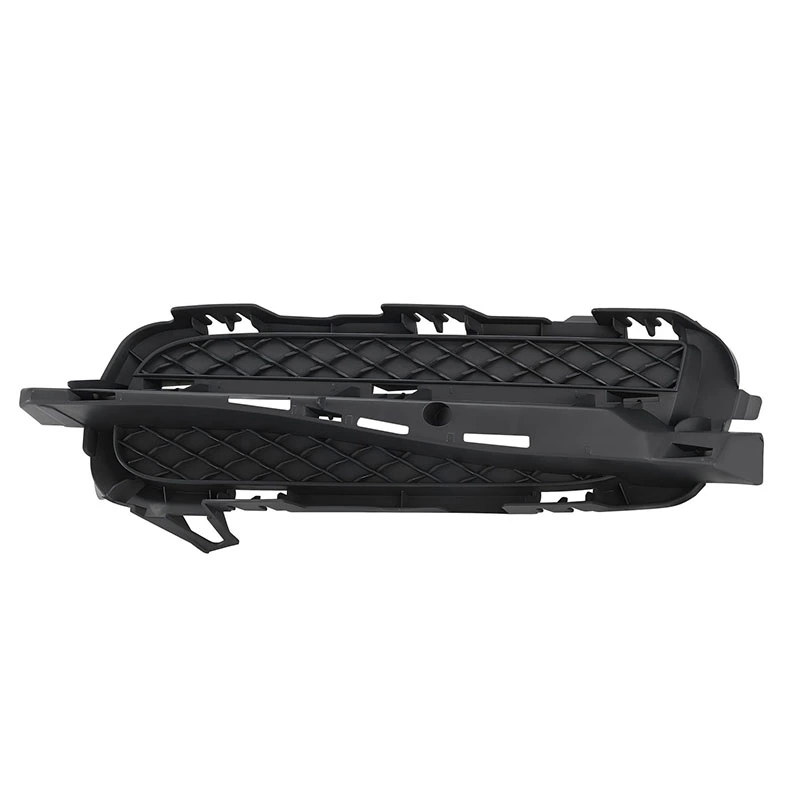

Front Bumper Outer Grille C2Z3837 C2Z3836

Front Bumper Outer Grille C2Z3837 C2Z3836 are installed on the left and right sides of the lower front bumper of the Jaguar XF. C2Z3836 corresponds to the front right lower position, and C2Z3837 corresponds to the front left lower position.

Key Functions

1. Airflow Guidance and Auxiliary Cooling

Located at the outermost edges of the front bumper, the Front Bumper Outer Grilles (C2Z3837/C2Z3836) channel airflow toward the front brake discs or the auxiliary coolant reservoir/oil cooler, aiding in heat dissipation and improving front-end aerodynamics.

2. Protection of Internal Components

The mesh design prevents road debris—such as flying stones, branches, and large particles—from directly striking internal components like the condenser, radar sensor wiring harnesses, or brake cooling ducts.

3. Front-End Styling

Working in conjunction with the large central grille, these components define the classic front-end appearance of the Jaguar XF, enhancing the vehicle's visual width and sense of depth.

Product Specifications

Common Scenarios for Replacement

● Collision Damage: Front-end collisions or scrapes causing the front bumper outer grille to crack, deform, or suffer broken clips.

● Aging and Fading: Prolonged exposure to sunlight and environmental factors causing the grille to fade, crack, or the surface coating to peel.

● Accidental/Human-Induced Damage: Grille becoming loose or damaged due to improper handling or high-pressure water spraying at close range (e.g., during car washes).

● Modification/Upgrade: Replacing the grille with a different style during aesthetic customization.

Quick Reference Chart for Replacement Decisions

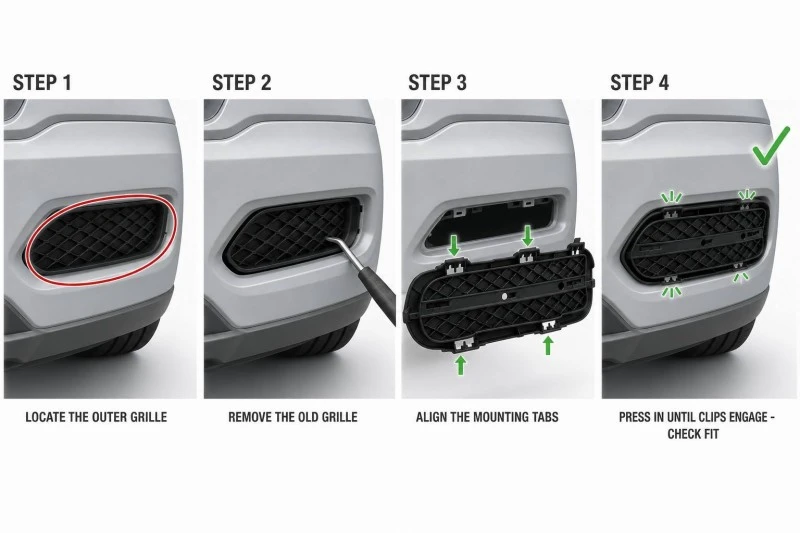

Installation Tips

1. Non-destructive Removal and Installation

● Removal: It is recommended to use a plastic pry tool. Insert it at a corner gap along the grille edge where the clips are less rigid, and release the clips one by one. Do not use a metal screwdriver to pry forcefully, as this may scratch the paint on the front bumper.

● Installation: There is no need to remove the entire front bumper. Align the clips of the new grille with the designated slots on the front bumper and apply even pressure with the palm of your hand; a distinct "click" indicates the grille is securely installed.

2. Inspect Internal Wiring and Air Ducts

After removing the old part, check the internal parking sensor wiring for looseness and inspect the brake air ducts for any blockages caused by mud or debris. Clean these areas thoroughly before installing the new part.

3. Pre-warming in Cold Conditions

Plastic clips can become brittle when working in winter or low-temperature environments. It is recommended to gently warm the clips on the back of the grille with a hair dryer before installation; this increases the plastic's flexibility and prevents the clips from snapping under pressure.

After-Sales Service and Support

1. Warranty and Return/Exchange Policy

Aori Auto Parts offers return and exchange services for products found to have defects not caused by user error, such as broken clips, paintwork flaws, circuit malfunctions, or dimensional tolerance issues. Every product is shipped using thickened foam and specialized shock-resistant packaging.

Should any component sustain damage due to crushing during international or domestic transit, simply provide a photo after delivery, and we will arrange a free replacement within 24 hours.

2. Exclusive Services for Buyers

We provide wholesale and auto repair shop clients with complimentary small accessories, such as clips and locating pins, included in the shipment, as well as replacement services for these items. Partnering with us grants you access to a dedicated account manager, multilingual technical support, and rapid response times.

FAQ

Q: How can I ensure the purchased part is 100% compatible with my vehicle?

A: The most accurate method is to provide your vehicle's 17-digit VIN (Vehicle Identification Number). Luxury vehicles such as Jaguar and Land Rover models, often feature variations due to mid-cycle facelifts or specific trim packages (e.g., R-Sport or SVR).

The Aori Auto Parts technical team performs a precise database cross-check before shipment to ensure a perfect part number match.

Q: Do I need to replace the entire front bumper if the outer grille is damaged?

A: Usually, no. If only the outer grille is cracked, missing, or has broken mounting clips, and the main body of the front bumper shows no significant deformation, you can simply replace the outer grille itself.

Q: What tools are required for installation?

A: You will need an 8mm or 10mm socket wrench, a Torx wrench, a plastic pry tool, and a jack with jack stands.
