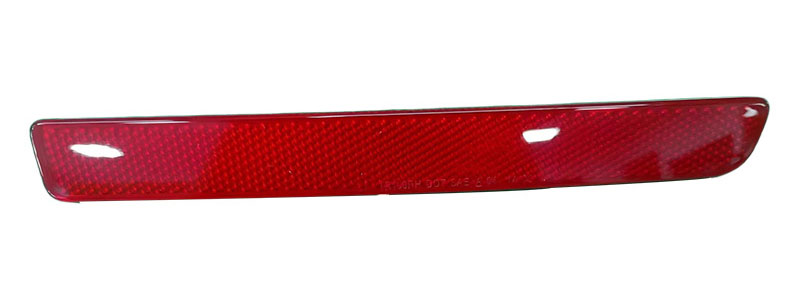

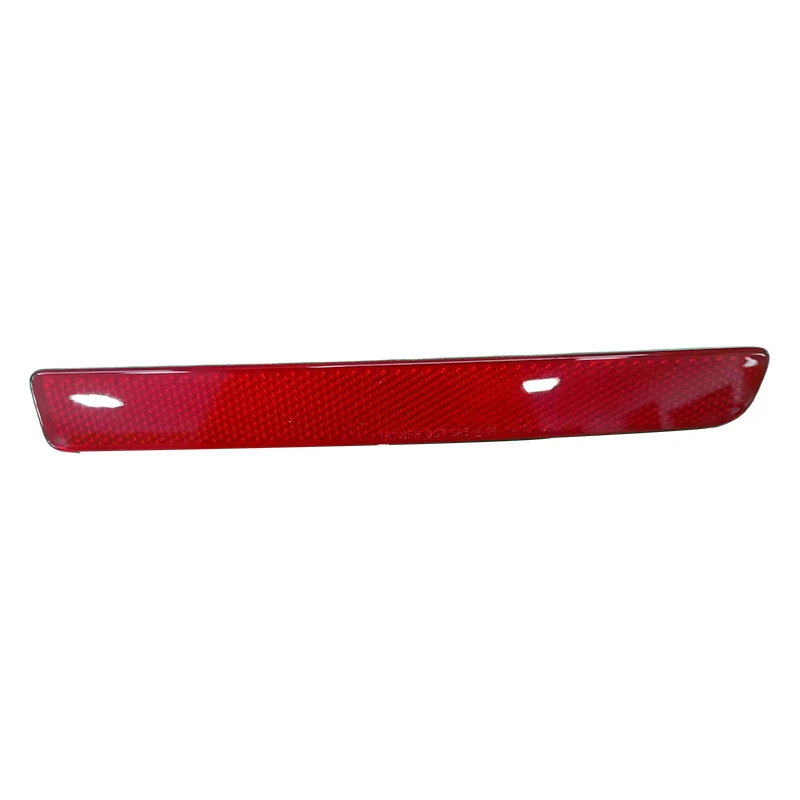

Rear Reflector XFF500030 XFF500020

The Rear Reflector XFF500030 XFF500020 are installed on both sides of the vehicle's rear bumper. They do not contain bulbs or wiring; instead, they feature an internal high-coefficient optical refraction prism structure that produces a strong red light reflection.

Aori Auto Parts is a professional manufacturer capable of supplying reliable products to Land Rover parts wholesalers, auto repair shops, parts distributors, importers of automotive exterior components, and aftermarket parts suppliers.

What Is a Rear Reflector?

A rear reflector is a crucial passive safety component; it requires no power source and instead operates based on optical reflection principles. When light from a vehicle behind strikes the reflector's surface, it is reflected back along its original path, creating a conspicuous red point of light. This makes the vehicle ahead easier for following drivers to spot, especially at night or in low-visibility conditions, thereby reducing the risk of rear-end collisions.

Key functions:

Passive safety warning: Operates without electricity, utilizing retro-reflection principles to enhance rear visibility at night or during rain and fog.

Regulatory requirement: Mandated by vehicle safety regulations in almost all countries and a required item for annual vehicle inspections.

Aesthetic styling: Integrates seamlessly with the rear bumper design, serving as an integral part of the vehicle's rear-end styling.

Rear Reflector vs. Rear Tail Lamp: What's the Difference?

Quick Identification: Rear Reflector (XFF500030, XFF500020) = Passive reflector; requires no power source. Rear Tail Lamp = Active light source; requires power from the vehicle's electrical system.

Product Specifications

Installation Steps

I. Removal of Old Part

1. Apply masking tape: Apply masking tape to the painted bumper surface surrounding the reflector to protect the paint from scratches caused by the pry tool.

2. Begin prying from the edge: Using a plastic trim pry tool, start at the top-right corner of the reflector; gently insert the tool into the gap between the reflector and the bumper to gradually loosen the retaining clips.

3. Release clips sequentially: Pry loose each clip point along the reflector's edge one by one; apply even pressure and avoid pulling forcefully.

4. Remove the old reflector: Once all clips are released, remove the old reflector from the bumper.

5. Inspect and clean clip mounts: Check the clip mounting points on the bumper for residual debris or damage; clean thoroughly if necessary, as any residue could cause rattling noises after installation.

II. Installation of New Part

1. Align bottom clips: Insert the bottom section of the Rear Reflector XFF500030 XFF500020 into the correct position first, ensuring the bottom clips are accurately aligned; do not force the top section down until the bottom is properly seated.

2. Press into place gradually: Once the bottom is seated, apply even pressure along the reflector's edge to lock all clips into place one by one.

3. Check gap and flushness: After installation, verify that the gap between the reflector and the bumper is uniform and that the surface sits flush with the bumper, with no lifting or misalignment.

4. Remove masking tape: Once installation is confirmed correct, remove the masking tape.

5. Final inspection: View the installed reflector from various angles to confirm there is no looseness or rattling, and that the appearance is symmetrical.

Troubleshooting Common Installation Issues

FAQ

Q: Must the rear reflector be replaced when replacing the rear bumper?

A: Not necessarily. If the original reflector is intact, shows no obvious damage, and can be securely mounted, it can be reused. However, if the old part is cracked, faded, missing, or has damaged mounting points, it is recommended to replace it at the same time as the rear bumper.

Q: Are XFF500020 and XFF500030 interchangeable?

A: No. Although the left and right parts look similar, their mounting orientations and attachment structures differ. You should select the part based on the OEM number and the LH/RH designation rather than attempting installation based solely on appearance.

Q: Are you the original manufacturer? What quality of products do you offer?

A: Yes. Aori Auto Parts is a manufacturer specializing in the R&D and production of exterior parts for the full range of Land Rover and Jaguar vehicles. For XFF500030 / XFF500020, we offer high-quality aftermarket parts made from ABS material.

They are manufactured in strict accordance with OE standards to ensure dimensional accuracy and a perfect fit. The products come in red and match the original vehicle perfectly.
