Grille Mesh C2D47215

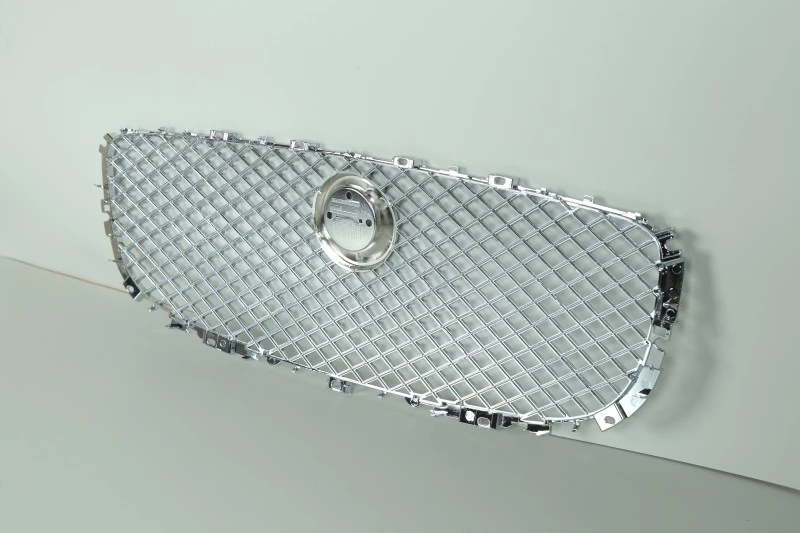

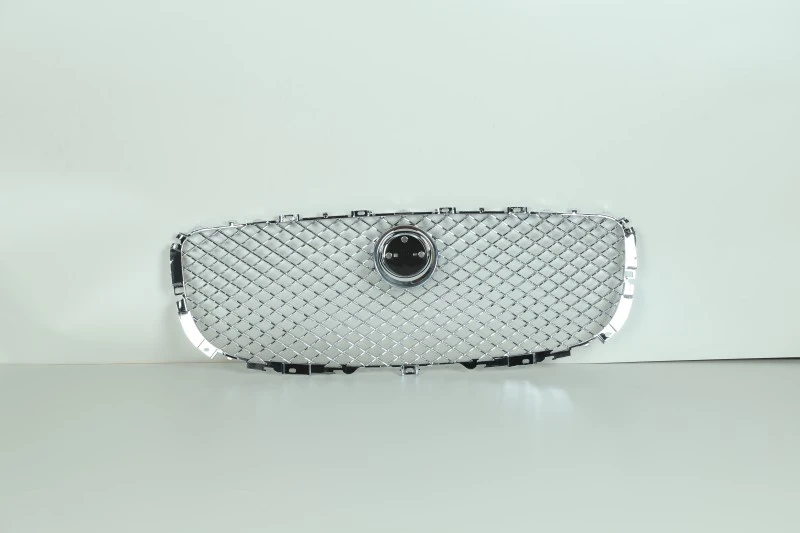

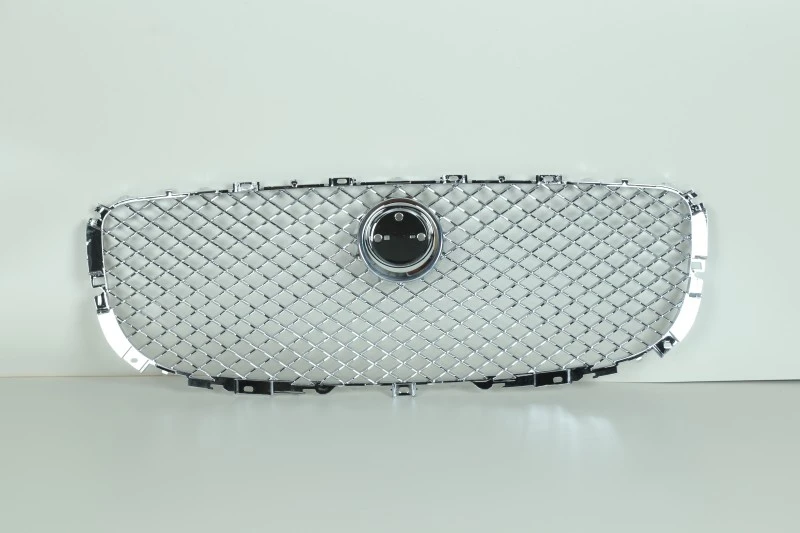

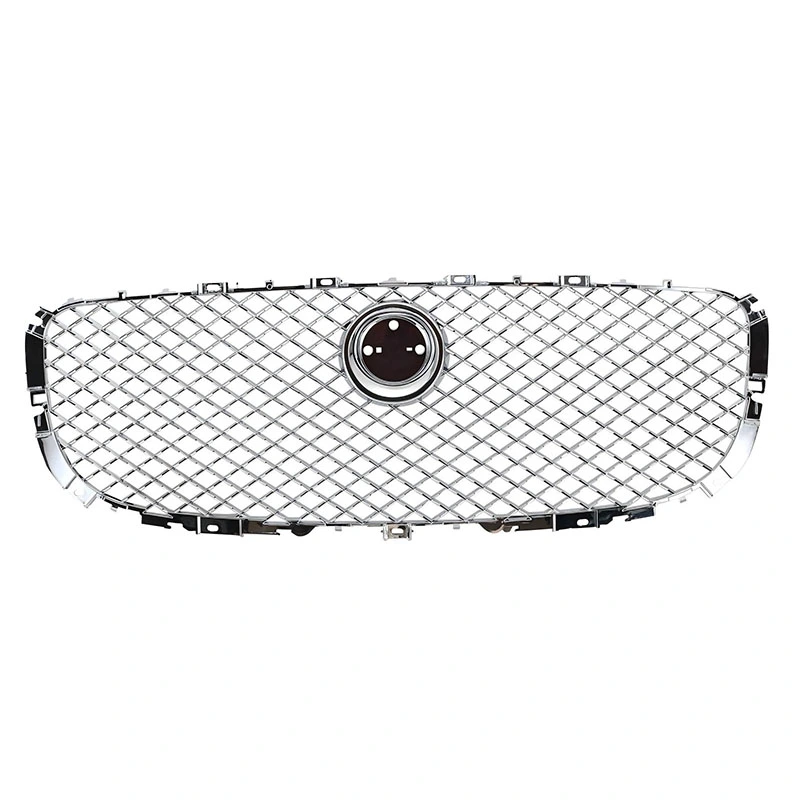

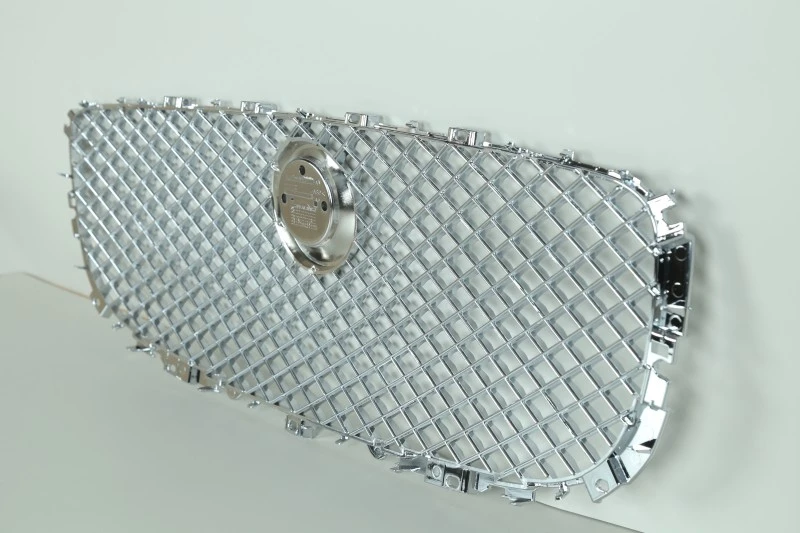

The Grille Mesh C2D47215 is a front exterior trim component for the Jaguar XJ (2010–2015) and XJR (2014–2015). Manufactured by Aori Auto Parts, it is crafted from high-quality ABS material with a chrome finish and strictly adheres to original factory specifications.

Product Specifications

Primary Functions

1. Forms the central front grille

Located at the center of the Jaguar XJ's front end, the Grille Mesh C2D47215 is a key component of the front grille assembly. If it is damaged, missing, or shows significant signs of aging, the vehicle's front end will appear incomplete, even if the bumper and grille surround remain in good condition.

2. Allows airflow into the engine bay

As part of the radiator grille, the mesh provides an airflow path for the vehicle's front cooling system while maintaining exterior protection and aesthetic integrity.

3. Provides basic protection for front cooling components

Positioned at the very front of the vehicle, the grille acts as a barrier against stones, leaves, and other road debris.

Recommended Accessory Combinations

The Grille Mesh C2D47215 can be purchased alongside other front-end components for collision repairs, used vehicle refurbishments, "black-out" styling modifications, or routine inventory stocking.

1. Grille Surround

Part Number: C2D47214

Compatibility Note: The grille mesh and surround form an interlocking assembly. Purchasing the surround together with the mesh is recommended for collision repairs.

2. Jaguar "Leaper" Grille Emblem

Compatibility Note: A mounting base for the emblem is pre-installed in the center of the grille mesh; the emblem must be transferred from the old part or a new one purchased during refurbishment or collision repair.

3. Side Mirror Covers

Part Numbers: C2Z4412 (Left) / C2Z4413 (Right)

Compatibility Note: An ideal combination for exterior upgrades to quickly achieve a sporty look.

Installation and Replacement Recommendations

1. Removal and Installation Recommendations

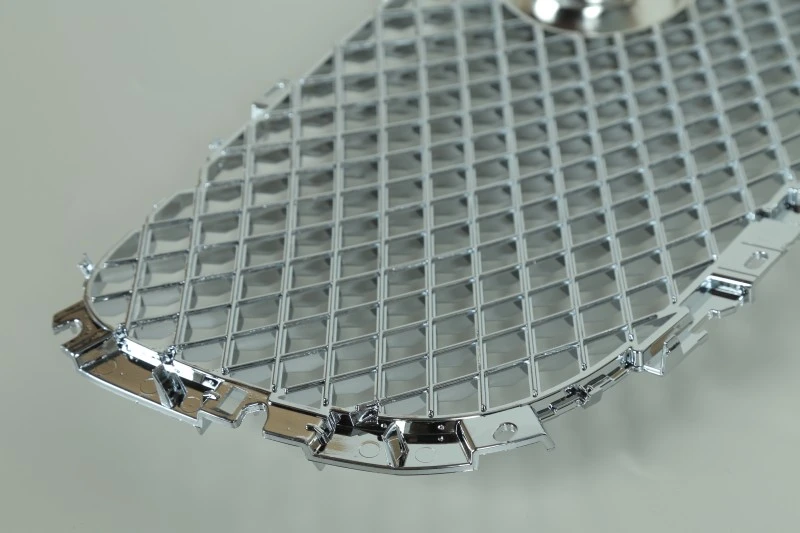

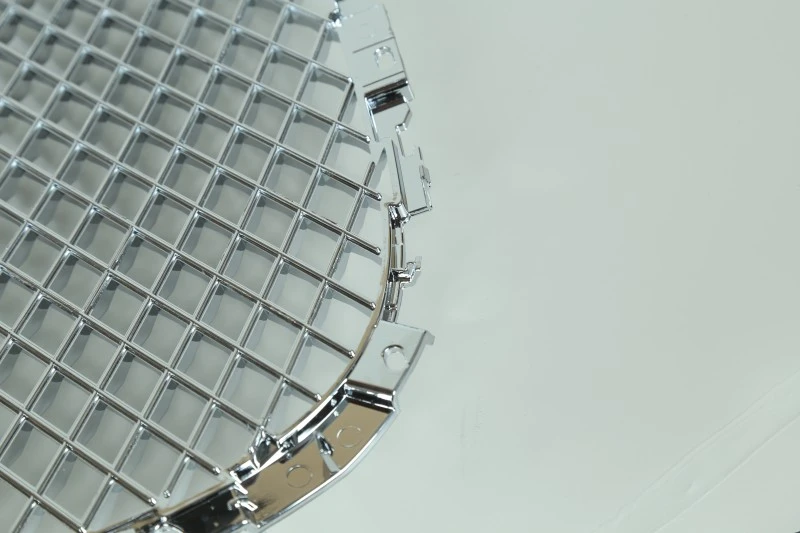

Avoid forced prying: The inner grille features numerous plastic tabs on its rear side that interlock with the inner surface of the front bumper and the outer frame. Attempting to forcibly pry it off from the outside of the vehicle carries a high risk of snapping the plastic mounting slots on the bumper.

Standard Procedure:

Remove the front bumper assembly;

Release the locking tabs securing the inner grille to the outer frame (C2D47214) from the back of the bumper;

Remove the old inner grille and thoroughly clean any dirt or debris from the mounting slots;

Align the new inner grille with the mounting points and press it into place; ensure the tabs are fully engaged and secure before reinstalling the bumper.

2. Installation Precautions

Ambient Temperature and Plastic Flexibility: Plastic becomes hard and brittle in winter or low-temperature environments. Before disengaging the tabs, gently warm the tab area with a hair dryer or heat gun to prevent the tabs from cracking.

Gap Alignment: Before fully tightening the bumper screws, check the alignment of the gaps between the grille, the hood (bonnet), and the headlights to ensure a perfect visual finish.

FAQ

Q: When should the Grille Mesh C2D47215 be replaced?

A: Accident damage: Cracks, deformation, or severe scratches caused by frontal collisions or scrapes.

Aging/Wear: Chrome plating peeling, paint fading/cracking, or plastic turning white/chalky.

Related repairs: Removal or replacement required during grille assembly replacement, or when servicing front sensors, cameras, or the cooling system.

Customization: Swapping to a different mesh style for a personalized look.

Q: How should the chrome grille be maintained?

A: We recommend using a soft automotive cleaning cloth and cleaning products suitable for automotive exterior trim. Avoid using strong acidic or alkaline cleaners, harsh abrasives, metal brushes, or hard objects that could scratch the surface; do not use high-intensity tools directly on the finish.

Q: What is the warranty policy?

A: Aori Auto Parts offers a 6-month warranty covering manufacturing defects under normal use, including material failure, clip failure, and peeling of the surface coating. Damage caused by improper installation, accidents, or modifications is not covered by the warranty. If an issue arises during the warranty period, please provide photographic or video evidence, and we will offer a solution within 3 business days.

Q: Do you support OEM/ODM customization?

A: Yes, we do. Please provide the following details:

1. Custom material (ABS / PP / Carbon Fiber)

2. Custom mesh style (Honeycomb / Horizontal slats / Diamond / Custom pattern)

3. Custom surface finish (Chrome / Gloss Black / Matte Black / Body-color match / Carbon fiber texture)

4. Custom branding (Laser engraving / Screen printing / Decal/Badge)

5. Custom packaging design.
