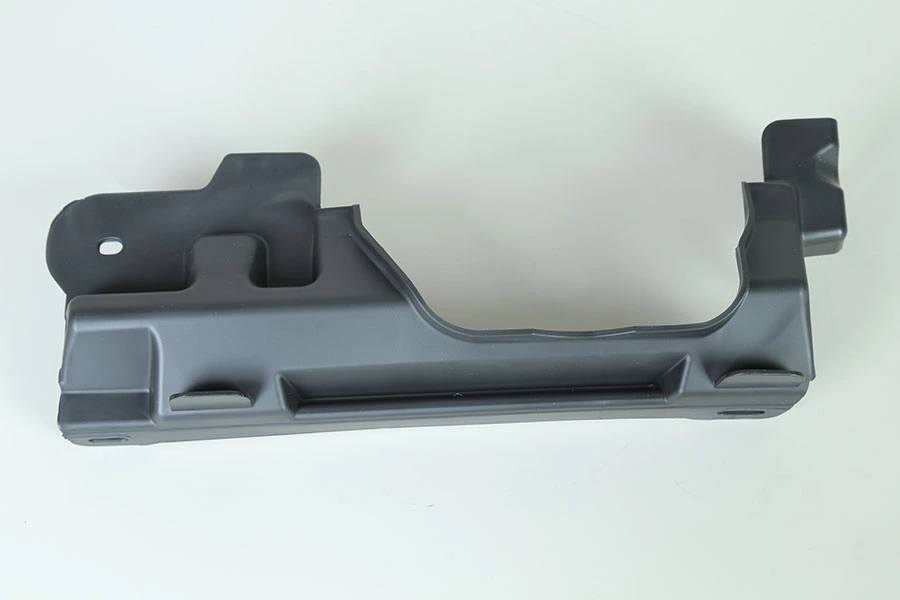

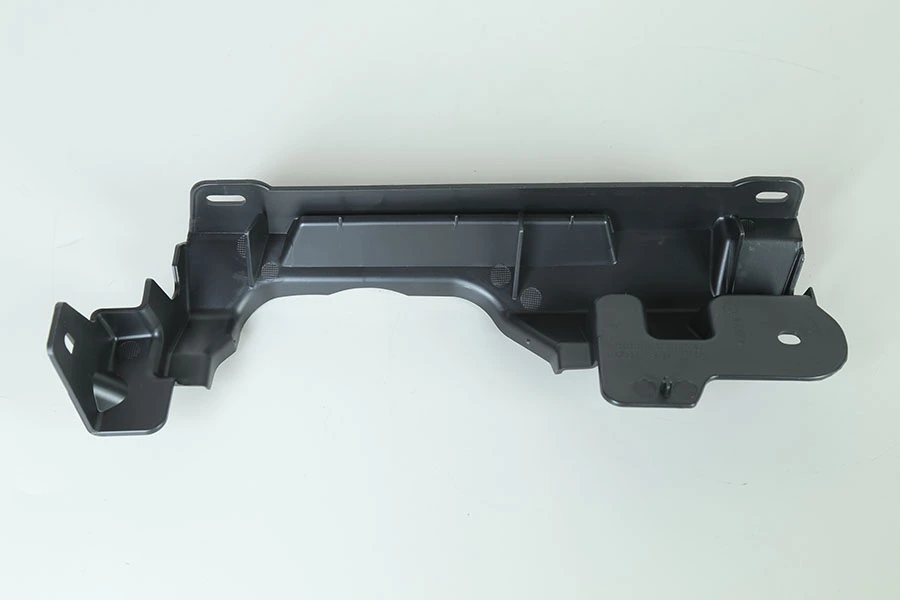

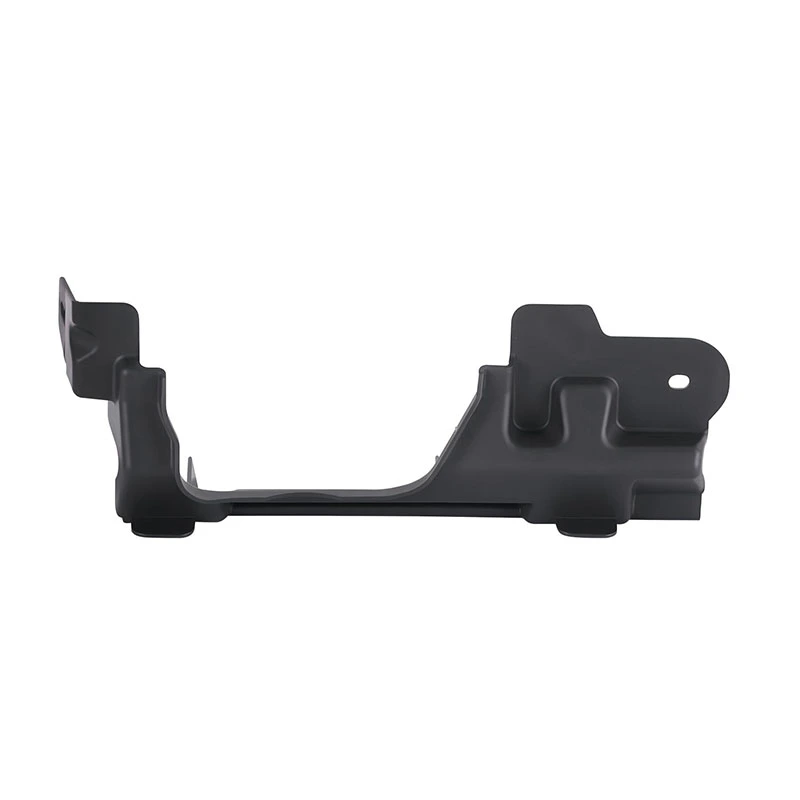

Rear Bumper Mount Bracket DQG000063 DQG000073

The Rear Bumper Mount Bracket DQG000063 DQG000073 is a support and connecting component situated between the bumper and the vehicle body; it secures the rear bumper in the correct position and helps maintain proper alignment and panel gaps.

It is compatible with the Land Rover Discovery 4 (2010–2016), Discovery 3 (2005–2009), and Range Rover Sport (2006–2013). Please feel free to contact Aori Auto Parts if you need assistance with part selection.

Core Functions and Roles

1. Structural Support and Lateral Securing

Installed between the rear body's metal side panel and the rear bumper fascia, the Rear Bumper Mount Bracket DQG000063 DQG000073 serve as the primary lateral load-bearing and mounting points for the sides of the rear bumper. They support and lock the ends of the rear bumper in place, preventing the large plastic fascia from sagging or detaching due to its own weight or prolonged exposure to road vibrations.

2. Gap Control and Aesthetic Alignment

The brackets feature precision-engineered positioning slots and locking clips designed to engage the bumper's mounting tabs. This ensures uniform, straight panel gaps between the rear bumper and the rear quarter panels, tail lights, and trunk lid.

3. Vibration Absorption and Noise Prevention

Acting as a buffer between the plastic bumper and the metal vehicle body, they absorb minor torsional stresses and road vibrations during driving. They prevent direct, abrasive contact between the plastic fascia and the vehicle's painted bodywork, thereby eliminating unwanted noises and protecting the body's anti-rust coating.

4. Collision Energy Transfer and Impact Cushioning

In the event of minor side-rear scrapes or low-speed rear-end collisions, the brackets absorb and dissipate a portion of the lateral impact force, protecting the more expensive metal rear quarter panels from direct impact damage or denting.

Vehicle Compatibility

DQG000063 and DQG000073 belong to the same set of rear bumper center mounting brackets, corresponding to the right-hand (RH) and left-hand (LH) sides, respectively, and are primarily used for the Land Rover Discovery 3, Discovery 4, and Range Rover Sport.

Installation Notes

1. Left/Right Distinction

DQG000063 and DQG000073 are mirror-image parts; ensure the correct left/right orientation before installation, as incorrect placement will cause significant bumper misalignment.

2. Paired Replacement

If one side is damaged due to a collision, it is recommended to replace the other side as well to ensure balanced mounting force and prevent the bumper from skewing.

3. Gap Inspection

After installation, view the bumper from directly behind the vehicle to check that the gaps between the bumper and the quarter panel are symmetrical (left/right) and uniform (top/bottom); readjust the bracket position if any discrepancies are found.

4. Functional Testing

After reconnecting the battery, verify that functions such as the reversing radar and blind-spot monitoring system are operating correctly. If the vehicle is equipped with a lane-change assist system, radar calibration is mandatory after removing and reinstalling the rear bumper.

5. Low-Temperature Environments

Plastic clips become brittle in cold weather; it is recommended to perform the installation in a warm indoor environment or to gently heat the clip area with a heat gun before installation.

Product Specifications

Aori Auto Parts Quality Assurance

All Aori Auto Parts parts are 3D scanned and reverse-engineered based on original manufacturer data, ensuring zero-error matching between mounting holes and clip positions and the original vehicle's specifications.

We strictly adhere to original manufacturer material formulations. For example, the Rear Bumper Mount Bracket DQG000063 DQG000073 use PP+EPDM-20 modified engineering plastics, and various brackets and clips are made of high-rigidity ABS material.

Each batch of products undergoes rigorous quality control before shipment, including visual inspection and on-vehicle testing. We have obtained IATF 16949 quality management system certification.

FAQ

Q: When does the rear bumper mount bracket need to be replaced?

A: Replacement is usually necessary if the bracket is broken, significantly bent, has deformed mounting holes, has damaged attachment points, or fails to position the bumper correctly. If only the bumper shell is damaged and the bracket remains unaffected, replacing the bracket may not be necessary.

Q: What tips should I keep in mind when installing the new bracket?

A: To avoid damaging the new part, please note the following:

1. Do not strike the bumper forcefully with a rubber mallet, as this could snap the tabs on the new bracket.

2. Before pushing the bumper into place, applying a small amount of silicone grease or soapy water to the bracket's slots can significantly reduce resistance, allowing for a smooth fit.

Q: If only one side is damaged, do I need to replace both sides?

A: Replacing them in pairs is recommended. If one side was damaged in a collision, the other side may also have hidden damage or rust; replacing both ensures balanced mounting force and prevents the bumper from becoming misaligned or having uneven gaps.

We also offer discounts for purchasing left and right pairs; please contact customer service for details.

Q: What after-sales services do you provide?

A: Aori Auto Parts offers comprehensive service support:

Pre-sales support: A professional team assists in verifying product compatibility with your vehicle (providing the VIN is recommended).

Order tracking: Updates provided throughout the production, quality inspection, and shipping processes.

After-sales guarantee: Coverage for non-human-induced quality issues, with options for returns, exchanges, or replacements.

Technical consultation: One-on-one guidance and answers for any issues encountered during installation or use.
