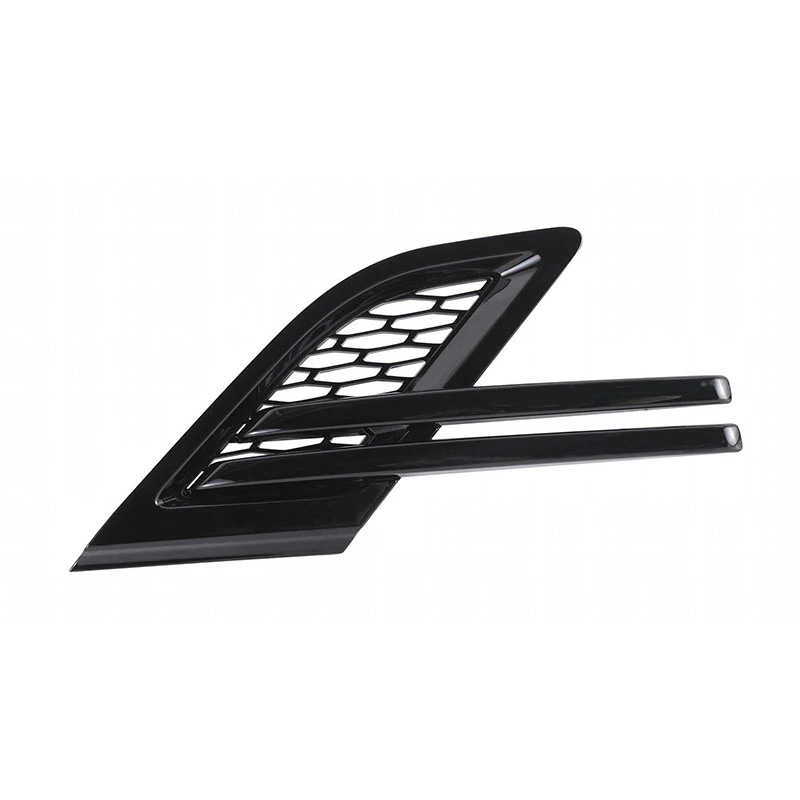

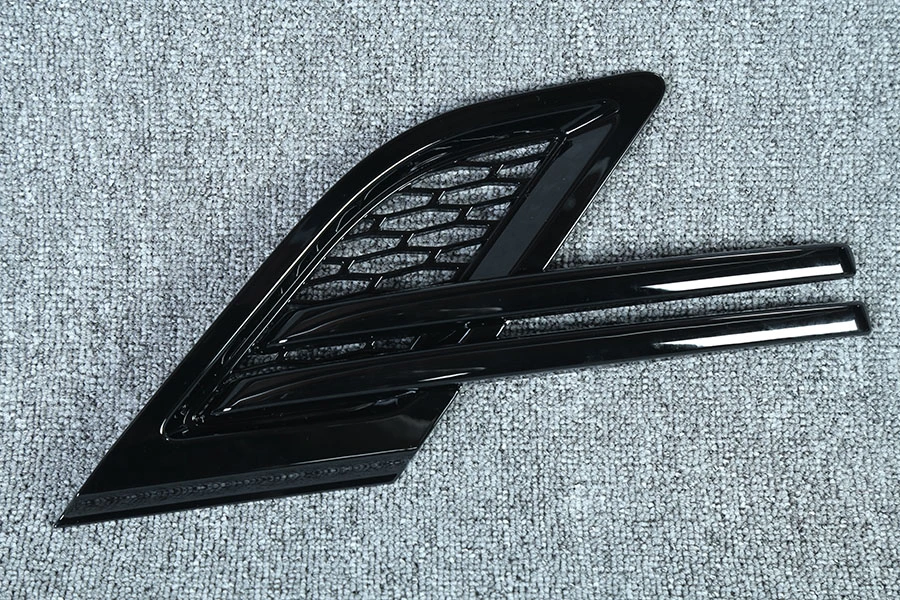

Front Fender Grille LR044151 LR044148

The Front Fender Grille LR044151 LR044148 is a decorative side grille mounted on the vehicle's front fender area; it enhances the fender's aesthetic design and creates a harmonious visual effect by complementing the vehicle's side lines and surrounding exterior trim. LR044151 corresponds to the left side, and LR044148 corresponds to the right side; these parts are suitable for the Land Rover Range Rover Sport (2014–2017).

Key Functions

1. Signature Land Rover Styling

The front fender grille (LR044151/LR044148) is a hallmark design element of the Land Rover Range Rover. Extending vertically along the leading edge of the front door, it offers high visual recognition while enhancing the vehicle's side profile with a sense of luxury and a sporty aesthetic.

2. Protection for the Fender-Door Gap

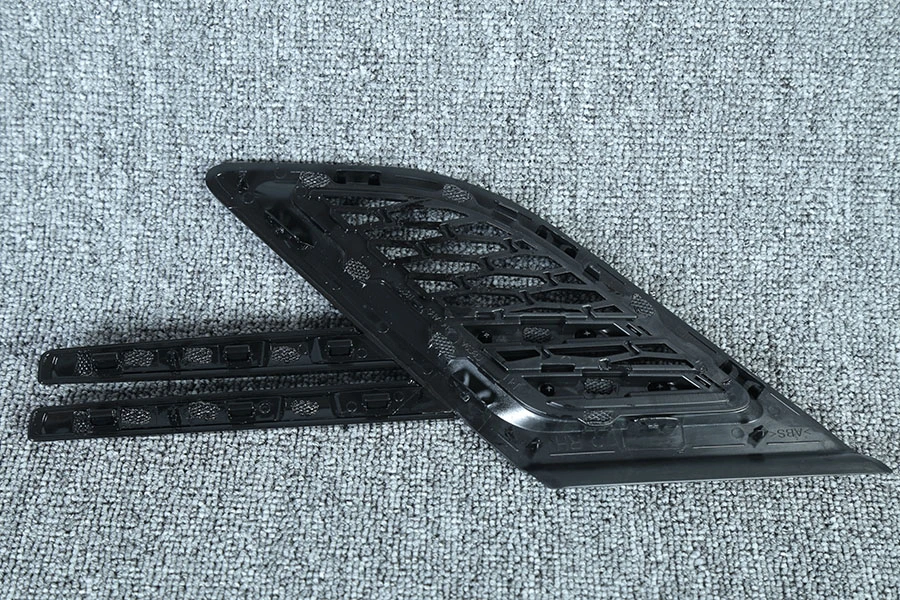

It covers the mounting hardware, drainage channels, and fastening clips located between the fender and the front door, preventing mud, debris, and fallen leaves from entering the door hinge area.

3. Personalized Visual Style

Owners can upgrade the vehicle's overall appearance by replacing the side air vent trim with versions in different color schemes.

Front Fender Grille vs. Front Grille: What's the Difference?

Product Specifications

Replacement Criteria

1. Mandatory Replacement

Structural fracture: The grille exhibits a crack extending through the material or is broken into two or more pieces, rendering repair via bonding impossible.

Severe deformation: The grille is bent or deformed beyond its original design profile, preventing proper fit against the fender after installation and resulting in uneven gaps.

Extensive clip damage: More than one-third of the mounting clips are broken or missing, preventing the grille from being securely fastened.

Torn mounting holes: Mounting holes are torn or enlarged, preventing bolts from being tightened effectively.

Severe fading/chalking: The surface coating is peeling extensively or has faded severely, compromising the vehicle's visual uniformity and making repair via repainting impossible.

2. Recommended Replacement

Localized cracks: Cracks exceeding 50mm in length; although not extending through the material, there is a risk of propagation.

Deep surface scratches: Scratches deep enough to expose the base material and located in a highly visible area, affecting aesthetic quality.

Minor deformation: The grille is slightly deformed but still installable; however, uneven gaps with adjacent components affect the overall appearance.

Single-side damage: LR044151 and LR044148 are a matched pair (left and right); if one side is damaged, replacing both simultaneously is recommended to ensure visual symmetry and consistency.

3. Repairable (No Immediate Replacement Required)

Shallow surface scratches: Minor scratches that do not penetrate to the base material; repairable via polishing.

Isolated loose clips: Only 1–2 clips are loose; the issue can be resolved by replacing the clips without replacing the entire grille assembly.

Localized minor scuffs: Only the surface coating is damaged; repairable via spot touch-up painting.

OEM Customization Process

1. Requirements Discussion and Assessment

For the OEM customization of the Front Fender Grille LR044151 LR044148, we first confirm surface finishing requirements, branding placement (casting/printing the logo on the inner side, back of clips, or outer packaging), and material specifications (e.g., modified plastic). The engineering team assesses mold feasibility, while the commercial team confirms the Minimum Order Quantity (MOQ) and preliminary target unit price.

2. Mold Development and Tooling

We provide complimentary DFM analysis to ensure clip positioning and injection points are free from sink marks and air voids, and that clip toughness meets assembly/disassembly standards. Subsequently, the injection mold is machined using high-precision CNC equipment.

3. Prototyping and First Article Approval

After producing the initial samples, we conduct testing and verification:

Vehicle Fitment Test: Verifying clip engagement force and panel gaps against the door or fender.

Paint Finish Testing: Cross-hatch adhesion test, high/low-temperature weather resistance test, and high-pressure water spray test. Upon completion, we send the samples and test reports to the client for First Article Approval.

4. Mass Production

Automated production utilizes high-precision injection molding machines, followed by a dust-free coating line for the application and curing of primer, base coat, and UV-protective clear coat. Client-specified barcodes and brand logos are then marked on the part or packaging as required.

5. Strict Quality Control and Reinforced Packaging

Comprehensive Inspection: Individual checks for paint scratches, air bubbles, and the integrity of the rear clips.

Surface Protection: High-gloss surfaces are covered with thick, anti-static PE protective film, and each unit is enclosed in a foam bag.

Customized Packaging: Tailored color boxes and protective inserts for clips are created based on B2B client requirements; alternatively, we offer "1 Pair/Box" export-grade packaging designed to prevent clip breakage during cross-border transit.

6. Inspection and Shipment

We support inspections based on the AQL 2.5 standard or on-site random inspections by SGS. Once everything is confirmed, we arrange shipment via sea, air, or dedicated cross-border lines and provide the necessary customs clearance and bill of lading documents.

FAQ

Q: Is it necessary to remove the door or use adhesive for installation?

A: No door removal or adhesive is required. The Front Fender Grille LR044151 LR044148 utilizes a non-destructive, clip-in design that mirrors the original factory part.

Installation steps are generally as follows:

1. Use a plastic pry tool to release the clips one by one along the edge of the old trim piece and remove it.

2. Clean out any dirt or debris from the gap between the door and the fender.

3. Align the tabs on the new trim piece with the mounting points on the vehicle body, then press firmly and evenly with the palm of your hand to secure it.

Q: Are the fender grilles interchangeable between the 2014–2017 models and the 2018–2022 models?

A: No, they are not interchangeable. The Range Rover Sport underwent a mid-cycle facelift in 2018, resulting in changes to the fender styling and the design of the side vents. The 2018–2022 models use the updated grille design, which cannot be installed on 2014–2017 models.

Q: If one side is damaged, should both sides be replaced at the same time?

A: Replacing both sides simultaneously is recommended. LR044151 and LR044148 are a matched left-and-right pair; replacing only one side may result in discrepancies in color or aging between the two grilles, affecting the vehicle's symmetry and overall appearance.
